Projects

Some Important Jobs-Automotive

Inspection of car heater assembly with Vision Inspection system mounted on 6- Axis robotic arm.
Automation Inspection of car carpets with Vision Inspection system mounted on 2-Axis motion system.
Pickup Fool Proofing Systems (Bearing Selection Machine)
Automated Guided Vehicle (AGV)
2 to 4-Axis Robotic Arm for spot welding applications.
Bar Codes, 2-D codes and RFID applications.
Automation of Spark plug assembly machine.
Automotive part inspection and torque testing machine.
Vision Inspection of bearing cap sequence on engine blocks.
Automation of Key Biting machine.
Automation of Piston and Ring assembly operations.



Some Important Jobs-Printing & Packaging

Automatic Splicers/ Reel Changers in printing industry
Paper Cutting Machine
Data Acquisition system for machine fault monitoring book binding machine.
Data Acquisition system for production and faults monitoring of printing machine.
Ink key control system for printing machines.
Automation of sheet fed printing machine.
Automation of gold foiling operation for Diary covers.
Automation of tube filling and packaging machine.
Automation of Brick-Pack packaging machine.
Automation of Srink Packaging machine.

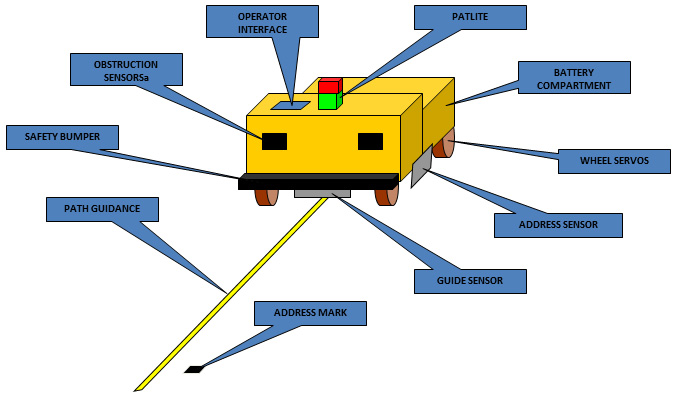

AUTOMATED GUIDED VEHICLE (AGV) FOR MARUTI

PRODUCTS USED

  • Omron CJ1M PLC
  • Waco Giken Wheel Servos
  • Macome Magnetic Guide and Address Sensors
  • Omron NT21 Touch Screen Display
  • Patlite Cube Tower
  • Bircher Safety Bumper
  • Hokkyo Obstruction Sensors.



CUSTOMER

MARUTI UDYOG LIMITED GURGAON

USED FOR UNMANNED MATERIAL MOVEMENT IN ASSEMBLY LINE



ROBOTIC VISION SENSING FOR SUBROS (MARUTI)

Omron F160 Vision Camera is mounted at the tip of Fanuc 6-Axis Robotic Arm.
Used for Inspection of Heater Assembly of Car Air Conditioner.
Checking of missing parts.
Checking of correctness of assembled parts.
Robot facilitates movement of camera on five faces of the Heater Assembly and Camera inspects the components on each of these faces.
Omron CJ1M PLC is used for co-ordination and data hand-shaking between the Vision System and Robot.
Automatic Model selection from one of the seven model have been done with one fixed camera connected to F160 Vision Controller.



VISION INSPECTION OF CURRENCY NOTES FOR RBI

Omron F160 Vision Inspection system is used for very high speed (240 per minute) inspection of Currency Notes.
Two number of systems are used to cover the complete note.
System performs around 32 checks on each note in less than 1/10th of a second.
Settings storage for different denomination of notes provided.
